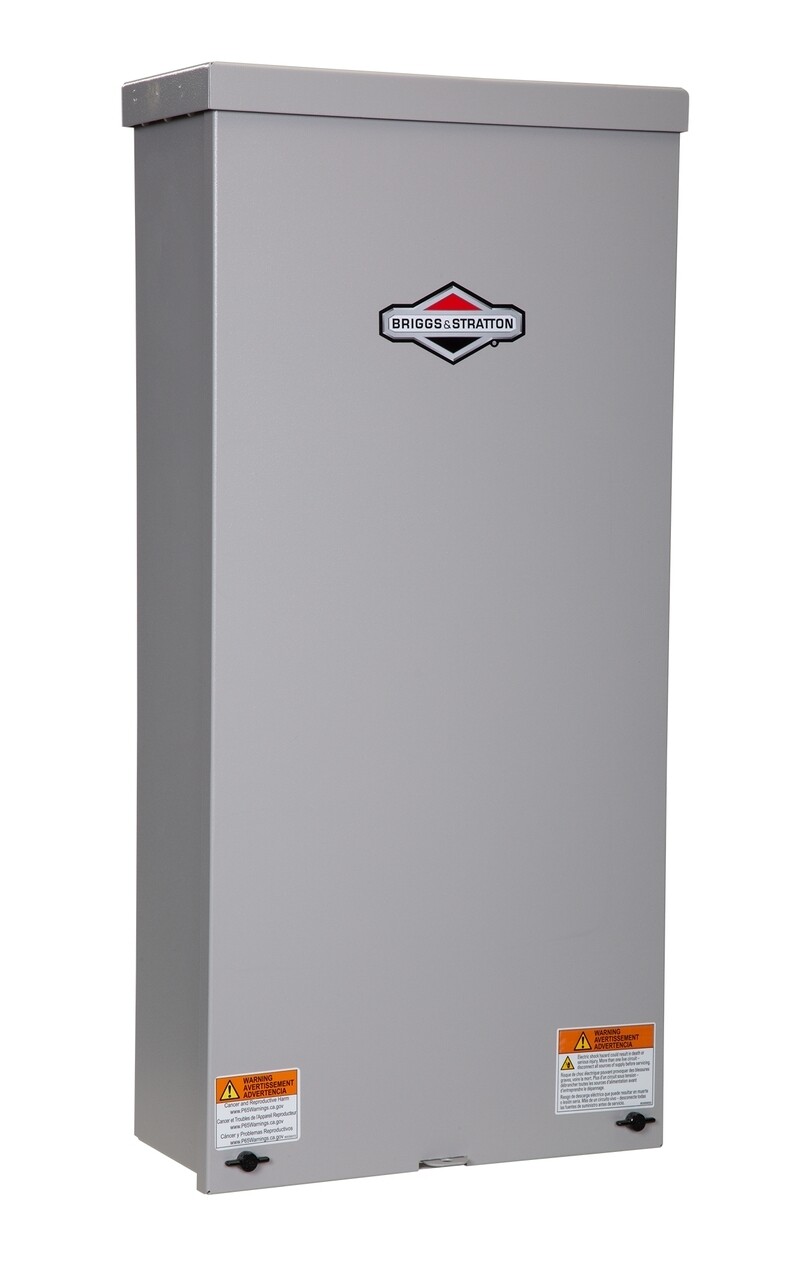

Briggs & Stratton 71212 100-Amp Automatic Transfer Switch w/ 16-Circuit Load Center

In stock
Product Details


Type Amp Rating Circuits Voltage Enclosure
Load Center 100 16 120/240 Single Phase Nema 3R

  • Maximum Safety, Comfort and Efficiency
  • Compatible with 12-20kW Intelligen Standby Generator
  • Rated at 100-Amps @ 240V
  • 16-Circuit Design (Breakers Not Included)
  • Allows you to select your priority circuits
  • Manage up to 2 AC units
  • AC Power Control Module (ACCM)
  • Imprints starting wattage of your AC in the control board
  • Monitors usage/watts until your AC can be started
  • Assures usage while preventing overload
  • Built-In AC Delay For AC Start-up
  • Allows for pressure to bleed off AC motor
  • Makes start-up less power intensive
  • Nema 3R Enclosure
  • Flexibility in mounting locations - indoor or outdoor
  • Wiring NOT Included
  • Breakers NOT Included


Product Specs
Voltage 120/240 Single Phase
Frequency 60 Hertz
Rated Amps 100 Amps
Enclosure NEMA 3R
Number of Circuit Breakers 16
Transfer Switch Style Standard Installation
ATS Load Prioritizing Built-In
ATS Load Shedding Built-In
ATS Service Disconnect No
Max Utility Input 100 Amps
Max Generator Input 100 Amps
Maximum Wattage 24000 Watts
CUL Listed Yes

Weight 37 lbs
Made in USA Yes
Consumer Warranty 5 Years
Product Length 24 Inches
Product Width 14 Inches
Product Height 6 Inches
